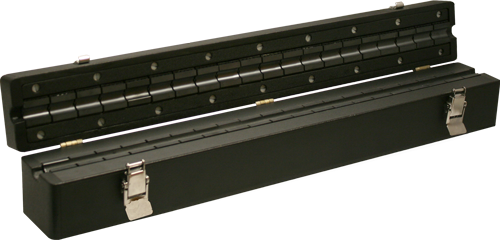

Com-Power CLA-050 10mm, 30MHz – 1000MHz, CISPR14, Absorbing Clamp

2.784,00

•Frequency Range: 30 MHz to 1 GHz
•Clamp Factor: -4 to +5 dBpW/µV [-17 + clamp Insertion loss]
•Clamp Insertion loss: 13 dB to 22 dB
•Decoupling Factor (DF): >21 dB
•Decoupling Factor (DR): >30 dB
•RF Connector: 50Ω – BNC (female)
•Operating Current: 30 A (max.)
•Operating Temperature: 40°F to 104°F (5°C to 40°C)
•Aperture Diameter: 0.5” (1.27 cm)
•Cable / Cable bundle Diameter (Max): 0.39” (1 cm)
•Dimensions (H x W x D): 5.8” x 24.8” x 3.7” (14.7 x 63 x 9.5 cm)
•Weight: 12 lbs (5.4 kg)

Artikelnummer: 0124 Kategorien: ,

Beschreibung

The Com-Power CLA-050 Absorbing Clamp is designed as per CISPR 16-1-3: “Radio disturbance and immunity measuring apparatus – Ancillary equipment – Disturbance power” to measure disturbance power on power input lines as well as other auxiliary I/O lines. The measurement of disturbance power is a method for determination of radiated disturbance, and an alternative to the measurement of disturbance field strength on an Open Area Test Site (OATS) or Semi-Anechoic Chamber (SAC). Absorbing clamp measurement method (ACMM) is described in Clause 7 of CISPR 16-2-2. Testing with Absorbing clamp is simplified compared to traditional methods of measuring radiated disturbances. It does not require a anechoic/ semi-anechoic chamber or a calibrated site. The use of an absorbing clamp for disturbance power measurements is required for certain types of devices per CISPR 13 [EN 55013], CISPR 32 [EN 55032] and CISPR 14 [EN 55014]. It can also be used to measure screening attenuation of RF coaxial cables.

•Useful for Distubance Power Measurement & Screening attenuation of cables
•Complies with CISPR 16-1-3
•Individual Calibration Included
•Three year warranty

Zusätzliche Information

Hersteller

Kategorien

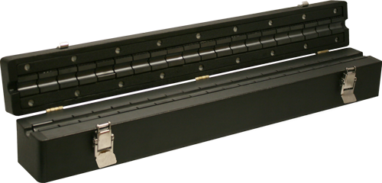

Com-Power CLA-050   10 mm, 30MHz – 1000MHz, CISPR14, Absorbing Clamp

Com-Power CLA-050 Produktdatenblatt
