AGILENT HP 11636B DC to 26.5GHz Power Divider

•Frequency range: dc to 26.5 GHz
•Maximum SWR: 1.29
•Insertion loss: 7.5 dB
•Maximum amplitude tracking: 0.25 dB at 18 GHz
•Maximum phase tracking: 2 deg typical



Artikelnummer: 1424 Kategorien: ,

Beschreibung

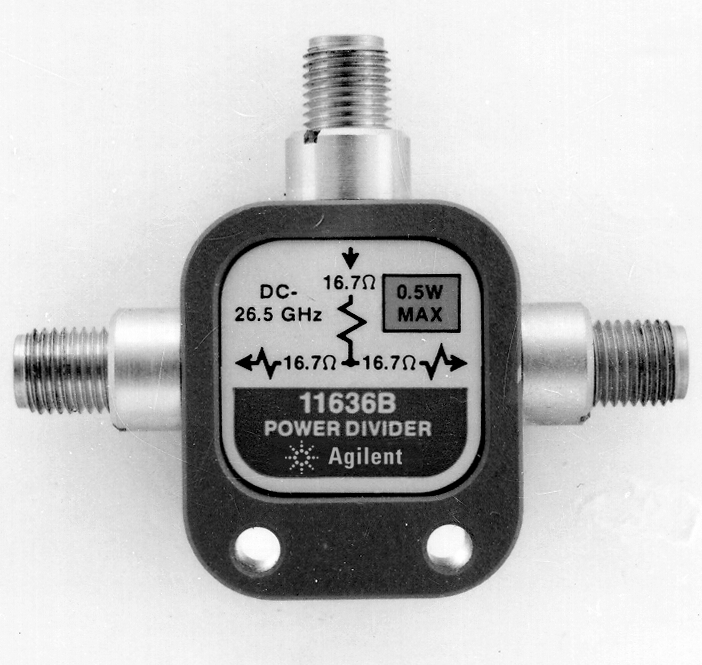

The Agilent HP 11636B is a dc to 26.5 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing re-reflections. The Agilent HP 11636B power divider/combiner is recommended when making wideband comparison measurements with the Agilent HP 8757 scalar vector network analyzer.

Zusätzliche Information

Hersteller

Kategorien

AGILENT HP 11636B    DC to 26.5GHz Power Divider

Agilent HP 11636B Produktdatenblatt
