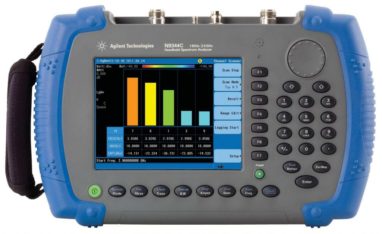

AGILENT HP N9344C 1MHz-20GHz Handheld Spectrum Analyser

•1 MHz to 20 GHz (tunable to 9 kHz)
•Internal preamplifier up to 20 GHz
•Built-in GPS receiver and GPS antenna
•Built-in tracking generator
•-144 dBm typical displayed average noise level (DANL)
•±1.3 dB amplitude accuracy
•+11 dBm typical third order intercept (TOI) at 1 GHz
•< 0.95 s sweep time for 20 GHz full span
•Channel scanner measures up to 20 channels simultaneously
•Spectrum monitor with spectrogram display, record, and playback
•High-accuracy power measurement with Agilent U2000 Series USB power sensors
•AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis

Artikelnummer: 1402 Kategorien: ,


If you are making measurements in the field, the Agilent HP N9344C handheld spectrum analyzer (HSA) makes your job easier. MIL PRF 28800 Class 2 compliant, it has the features you need for operating in tough field environments, and its measurement performance gives you confidence the job’s been done right. The Agilent HP N9344C HSA lets you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Agilent N9344C HSA.

•Get field-ready features – rugged and fanless design, clear viewing both day and night
•Reduce test setup time by 95% using the innovative task planner option


Zusätzliche Information



AGILENT HP N9344C    1MHz-20GHz Handheld Spectrum Analyser

AGILENT HP N9344C Produktdatenblatt
