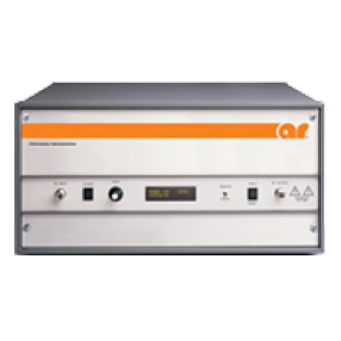

Amplifier Research 100A400 100KHz-400MHz, 100W RF Power Amplifier

•Rated Power Output: 100.0 W
•Frequency Range – Low: 100.00 kHz
•Frequency Range – High: 400.00 MHz
•Output : P1dB
•Compression: 100 W
•Gain: 50.0 dB
•Gain Range: 20 dB min

Artikelnummer: 1503 Kategorien: ,


The Amplifier Research 100A400 is a self-contained, broadband unit designed for laboratory applications where instantaneous bandwidth, high gain and moderate power output are required. Utilization of push-pull MOSFET circuitry lowers distortion, improves stability and allows operation into any load impedance without damage. The 100A400, when used with an RF sweep generator, will provide a minimum of 100 watts of swept power. There is a digital display on the front panel to indicate the operate status and fault conditions when an over temperature, power supply, or amplifier fault has occurred. The unit can be returned to operate when the condition has been cleared. The 100A400 includes digital control for both local and remote control of the amplifier. This 8-bit RISC microprocessor controlled board provides both IEEE-488 (GPIB) and asynchronous, full duplex RS-232 control of all amplifier functions. All amplifier control functions and status indications are available remotely in GPIB / IEEE-488 format. The buss interface connector is located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier.

Zusätzliche Informationen



Amplifier Research 100A400    100KHz-400MHz, 100W RF Power Amplifier

Amplifier Research 100A400 Produktdatenblatt
