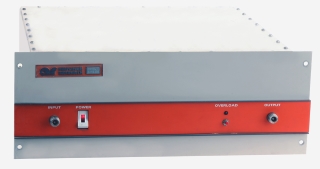

Amplifier Research 10W1000 1MHz-1GHz, 10W RF Amplifier

•Frequency Range: 1 to 1000 MHz
•Power output: 10 W (1 to 900 MHz), 8 W (900 to 1000 MHz)
•Flatness: ±1.0 dB typical, ±1.5 dB maximum
•Power Gain: 40 dB Minimum
•Input Impedance: 50 Ohms; VSWR 2.0:1 max.
•Output Impedance: 50 Ohms nominal
•Reverse Isolation: Greater than 45 dB
•Class of operation: A
•RF Connectors: Type N female

Artikelnummer: 1508 Kategorien: ,

Beschreibung

The Amplifier Research 10W1000 RF Amplifier features CW, 1 MHz to 1 GHz frequency range, and 10W power output. The AR 10W1000 is a portable, self-contained, air-cooled, broadband, solid state amplifier designed for applications where instantaneous bandwidth and high gain are required. Push-pull circuitry is utilized in the high power stages to lower distortion and improve stability.

Zusätzliche Information

Hersteller

Kategorien

Amplifier Research 10W1000    1MHz-1GHz, 10W RF Amplifier

Amplifier Research 10W1000 Produktdatenblatt
