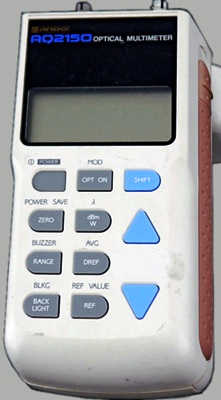

Ando AQ2150 Optical Multimeter

•Wavelength Range: 750 to 1700nm
•Reference Wavelength:1310nm
•Photodetector: InGaAs, 1mm
•Power Range (CW Light): -80 to +10dBm
•Power Range (Chopped Light): -80 to +7dBm Accuracy: ± 5%

Artikelnummer: 1626 Kategorien: ,

Beschreibung

The Ando AQ2150 optical multimeter is designed for use in the field, with small size, light weight and ease of use. Swapping the LD / LED light source units, sensor units  and return loss units (2 types) makes it possible to use this handy instrument as an optical power meter, stabilized light source, loss test set or return loss measurement system. With handheld size and a weight of approx. 450g, you can use it anywhere. You can switch between 1310 and 1550nm by touching a button, meaning that you don’t have to halt work to exchange plug-in units.

•Optical Fiber Loss Measurement
•Optical Component Measurement
•Free-Space Beam Power Measurement
•Near-End Fault Localization
•Return Loss Measurement for Optical Connectors and Components
•High-Output Measurement

Zusätzliche Information

Hersteller

Kategorien

Ando AQ2150          Optical Multimeter

Ando AQ2150 Produktdatenblatt
