AQ6331 Ando

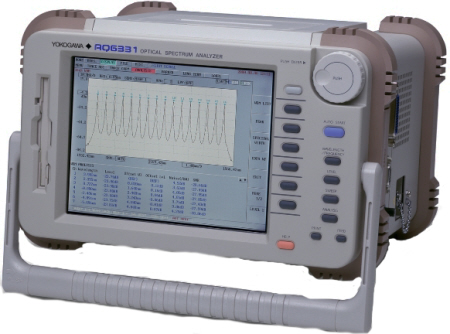

Ando AQ6331 1200nm-1700nm Optical Spectrum Analyser

•Wavelength Range: 1200nm to 1700nm
•Wavelength Resolution: 0.05 nm
•Wavelength Accuracy: ±0.02 nm (1520 to 1580 nm), < ±0.05 nm (1580 to 1620 nm),
±0.3 nm (1200 to 1700 nm)
•Dynamic Range: 55 dB (peak ±0.4 nm), 40 dB (peak ±0.2 nm)
•Return loss 30 dB typ. (Optical input, 1550 nm, 1600 nm)
•Power requirements: AC100 to 120 V, AC200 to 240 V, 48 to 63 Hz, approx. 100 VA



Artikelnummer: 1646 Kategorien: ,

Beschreibung

The Ando AQ6331 is a portable optical spectrum analyzer (OSA) with the high performance required for 50 GHz and 100 GHz DWDM network testing, in both the C and L bands. The AQ6331 is compact and has all the features required for DWDM system evaluation. It also has excellent wavelength resolution, with accuracy and dynamic range equal to that of any conventional bench-top OSA used in research and development applications. The AQ6331 OSA is suitable both for the installation and maintenance of DWDM systems and for research and development applications.

•Compact and lightweight
•Internal wavelength calibration with a built-in wavelength reference
•One-key-operation with a built-in user programming function
•Unique long-term measurement function to monitor DWDM system stability and performance
•Various built-in analysis function
•Display: 8.4-inch color LCD (800 x 600 dots)



Zusätzliche Informationen

Hersteller

Kategorien

Ando AQ6331    1200nm-1700nm Optical Spectrum Analyser

Ando AQ6331 Produktdatenblatt
