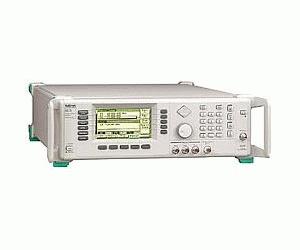

ANRITSU WILTRON 68169B 10MHz-40GHz Synthesised Sweep Generator

•Frequency Range: 0.01GHz to 40GHz
•Output Power Range: -15dBm to 13dBm
•Power Resolution: 0.01dB
•Output Accuracy: 2dB
•Output Impedance: 50Ohms
•Single Side Band Noise: -96dBc/Hz to -60dBc/Hz
•Internal AM,FM, phase and pulse modulation
•User down-loaded complex modulation
•Self-test, Secure mode, Reset
•Master/slave operation
•360B SS Mode



Artikelnummer: 1802 Kategorien: ,

Beschreibung

The Anritsu Wiltron 68169B 40.0 GHz Synthesized Sweep Generator features 10 MHz to 40 GHz analog, step, and manual sweep capability. Output levels to +17 dBm and optional 0.1 Hz resolution. It provides AM and FM via external modulating signals or internal arbitrary waveform generators. The internal generators offer 7 modulating waveforms, including Gaussian noise, as well as user-defined arbitrary waveforms. Pulse modulation parameters can be set externally or by the internal pulse generator. Doublet, triplet, or quadruplet pulses make RADAR blind spot testing easy. Simultaneous synchronized modulations let you set complex signal scenarios across the entire frequency range.

Zusätzliche Information

Hersteller

Kategorien

ANRITSU WILTRON 68169B    10MHz-40GHz Synthesised Sweep Generator

Anritsu Wiltron 68169B Produktdatenblatt
