Com-Power AM-400 Motorized Antenna Mast

9.337,00

•Min. Antenna Height: 1 meter
•Max. Antenna Height: 4 meter
•Load Capacity:15 lbs. (6.8 kg)
•Motor: 1/20 HP AC Gear Motor
•Power: Reversing Drum
•Standard Extension Cable: 32.6 feet ( 10 meters)
•Weight: 200 lbs. (90 kg)

Artikelnummer: 0164 Kategorien: ,

Beschreibung

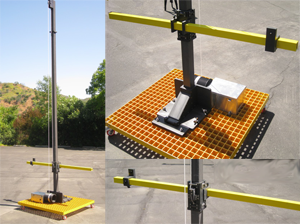

The Com-Power AM-400 antenna mast is suitable for making EMC radiated emissions measurements in an open area test site or test chambers. The AM-400 is motorized antenna masts designed for EMI testing. They are constructed using non conductive fiber glass material. The antenna is mounted on a one piece cross boom, which is attached to a slider assembly. The slider assembly rides over the length of the mast on delrin wheels. It is pulled by a rope and pulley mechanism powered by a electric motor. The slider assembly is equipped with a spring loaded braking mechanism to Prevent inadvertent descent should the rope fail.

•1-4 meter antenna height standard for CISPR/FCC
•Motorized Electric height adjust
•Low-stretch polyester rope suspension
•Safety brake on the carriage to prevent antenna damage if the rope breaks
•Two position remote switch to adjust the height
•Low maintenance
•The cross boom allows mounting most types of antennas using appropriate adapters
•Made of mostly fiberglass non conductive materials
•Four meter boom can be laid flat when not in use
•Casters for easy moving
•Strong, stable construction with wide fiberglass base
•The boom can be laid flat when not in use

Zusätzliche Information

Hersteller

Kategorien

Com-Power AM-400          Motorized Antenna Mast

Com-Power AM-400 Produktdatenblatt
