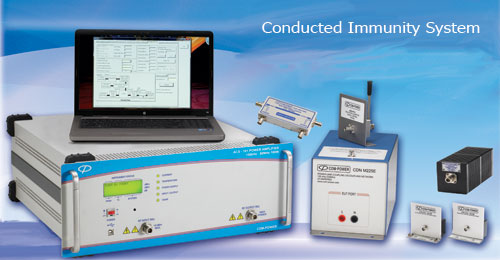

Com-Power CIS-25 Conducted Immunity Test System with 25W Power Amplifier

10.378,00

Frequency range: 150kHz to 250MHz
•RF Power Amplifier: ACS-230-25W
•Coupling Decoupling Networks (CDN) (to be determined at the time of purchase): CDN-xx
•Directional Coupler: DCD-1000-100W
•Shorting Adapter: ADA-515 150 Ohm to 50 Ohm adapters
•Attenuator: ATTN-6-100W
•Attenuator: ATTN-30-100W
•Software: CSAT 2.xx
•Cable set: CIS-CB4

Artikelnummer: 0152 Kategorien: ,

Beschreibung

The Com-Power CIS series of Conducted immunity system specifically geared for use in IEC 61000-4-6 immunity testing using coupling decoupling networks (CDN).The system can be customized include the CDNs to fit your application at the time of purchase.
The CIS-series systems test systems are configured to perform conducted immunity testing according to IEC 61000-4-6. The system includes ACS series power amplifier, Coupling Decoupling Network (CDN), directional couplers, attenuators, cables and CSAT software. These systems when properly configured are capable of testing your products to the all levels given in IEC 61000-4-6 up to 230 MHz.
Before you begin testing with the CDN you will need to establish a calibrated drive levels corresponding to the test levels. Accessories such as ADA-51A5, TEP-050 and ADA-xx shorting adapters are needed for calibration is included with each system. When used with compatible signal generator and spectrum analyzer and the CSAT test software can fully automate this calibration and also perform the test. All Com-Power CDNs are calibrated to meet the latest CISPR 16 test standards.

•Suitable for IEC-61000-4-6 testing
•Automated test software
•Test level calibration accessories included
•CISPR 16 compliant CDNs





Zusätzliche Information

Hersteller

Kategorien

Com-Power CIS-25    Conducted Immunity Test System with 25W Power Amplifier

Com-Power CIS-25 Produktdatenblatt
