Com-Power CDN-C50E 150kHz-230MHz Coupling / Decoupling Network, 50 Ohm Coaxial Cable


•Compliant Test Standards: IEC / EN 61000-4-6
•Application: 50 Ohm Coaxial Cables
•Frequency Range: 150 kHz to 230 MHz
•RF Input Voltage: 40 V (Max)
•RF Input Connector: 50 Ω BNC (Female)
•Voltage Rating: 310 V AC / 440 V DC (Line to Ground)
•Current Rating: 1 Amp (Max)
•AE and EUT Connections: 50 Ohm Female BNC
•Voltage Division Factor: 9.5 dB +3 / -1
•Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
•Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
•Weight: 5 lbs. or 2.3 kg

Artikelnummer: 0134 Kategorien: ,

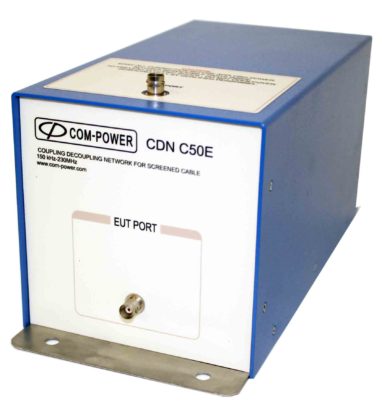

The Com-Power CDN-C50E is one of the series of Coupling/Decoupling Networks designed to comply for testing product for conducted immunity per IEC/EN 61000-4-6 and CISPR 16-1-2. The CDN-C50E is designed for testing products that uses 50 Ohm coaxial cables for data communication. It has 50 Ohm BNC connectors for both EUT and AE power connection. The CDN-C50E can handle up to 1 Amp of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. This is a pre-packaged solution that includes an ACS series power amplifier and all accessories required for the test. Com-Power CDNs are individually calibrated. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test System.

•Meets IEC/EN 61000-4-6 and CISPR 16-1-2
•50 Ohm Coax Cables
•Individual Calibration included
•Three Year Warranty

Zusätzliche Informationen



Com-Power CDN-C50E    150kHz-230MHz Coupling / Decoupling Network, 50 Ohm Coaxial Cable

Com-Power CDN-C50E Produktdatenblatt
