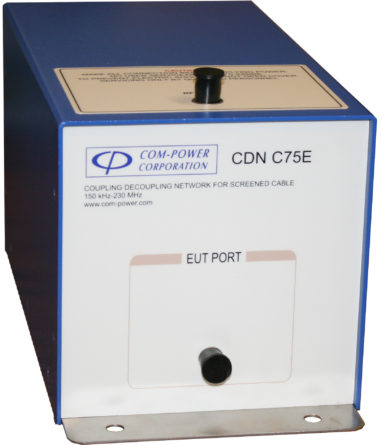

Com-Power CDN-C75E 150kHz-230MHz Coupling / Decoupling Network, 75 Ohm Coaxial Cable


•Compliant Test Standards: IEC / EN 61000-4-6
•Application: 75 Ohm Coaxial Cables
•Frequency Range: 150 kHz to 230 MHz
•RF Input Voltage: 40 V (Max)
•RF Input Connector: 50 Ω BNC (Female)
•Voltage Rating: 310 V AC / 440 V DC (Line to Ground)
•Current Rating: 1 Amp (Max)
•AE and EUT Connections: 75 Ohm Female BNC
•Voltage Division Factor: 9.5 dB +3 / -1
•Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
•Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
•Weight: 5 lbs. or 2.3 kg

Artikelnummer: 0135 Kategorien: ,


The Com-Power CDN-C75E is designed for testing products that uses 75 Ohm coaxial cables for data communication. It has 75 Ohm BNC connectors for both EUT and AE power connection. The Coupling Decoupling Network CDN-C75E can handle up to 1 Amp of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. Com-Power CDN-C75E is a part of the series of Coupling/Decoupling Networks designed for testing product for conducted immunity per IEC/EN 61000-4-6. The Com-Power CDN-C75E fully complies with the requirements contained in the CISPR 16-1-2. All Com-Power CDNs are individually calibrated and can be purchased separately or as part of the CIS series conducted immunity test system. This is a pre-packaged solution for the EMC testing that includes all required accessories and ACS series power amplifier.

•Meets IEC/EN 61000-4-6 and CISPR 16-1-2
•75 Ohm Coax Cables
•Individual Calibration included
•Three Year Warranty




Zusätzliche Informationen



Com-Power CDN-C75E    150kHz-230MHz Coupling / Decoupling Network, 75 Ohm Coaxial Cable

Com-Power CDN-C75E Produktdatenblatt
