Com-Power CDN-M525E 150kHz-230MHz Coupling / Decoupling Network, Five lines, 25 Amp.

1.760,00

•Compliant Test Standards: IEC / EN 61000-4-6
•Application: Five conductor power cable
•Frequency Range: 150 kHz to 230 MHz
•RF Input Voltage: 40 V (Max)
•RF Input Connector: 50 Ω BNC (Female)
•Voltage Rating: 250 V AC / 350 V DC (Line to Ground)
•Current Rating: 25 Amps AC / 17 Amps DC (Max)
•AE and EUT Connections: 4 mm shrouded banana sockets
•Common Mode Impedance:
150 kHz – 26 MHz: 150Ω ± 20Ω
•Common Mode Impedance: 26 MHz – 80 MHz: 150Ω + 60Ω / – 45Ω
•Common Mode Impedance: 80 MHz – 230 MHz: 150Ω + 60Ω / – 60Ω
•Voltage Division Factor: 9.5 dB +4 / -1
•Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
•Dimensions: 6 x 6 x 13 inches / 15.2 x 15.2 x 33 cm
•Weight: 5 lbs. / 2.3 kg

Artikelnummer: 0130 Kategorien: , ,

Beschreibung

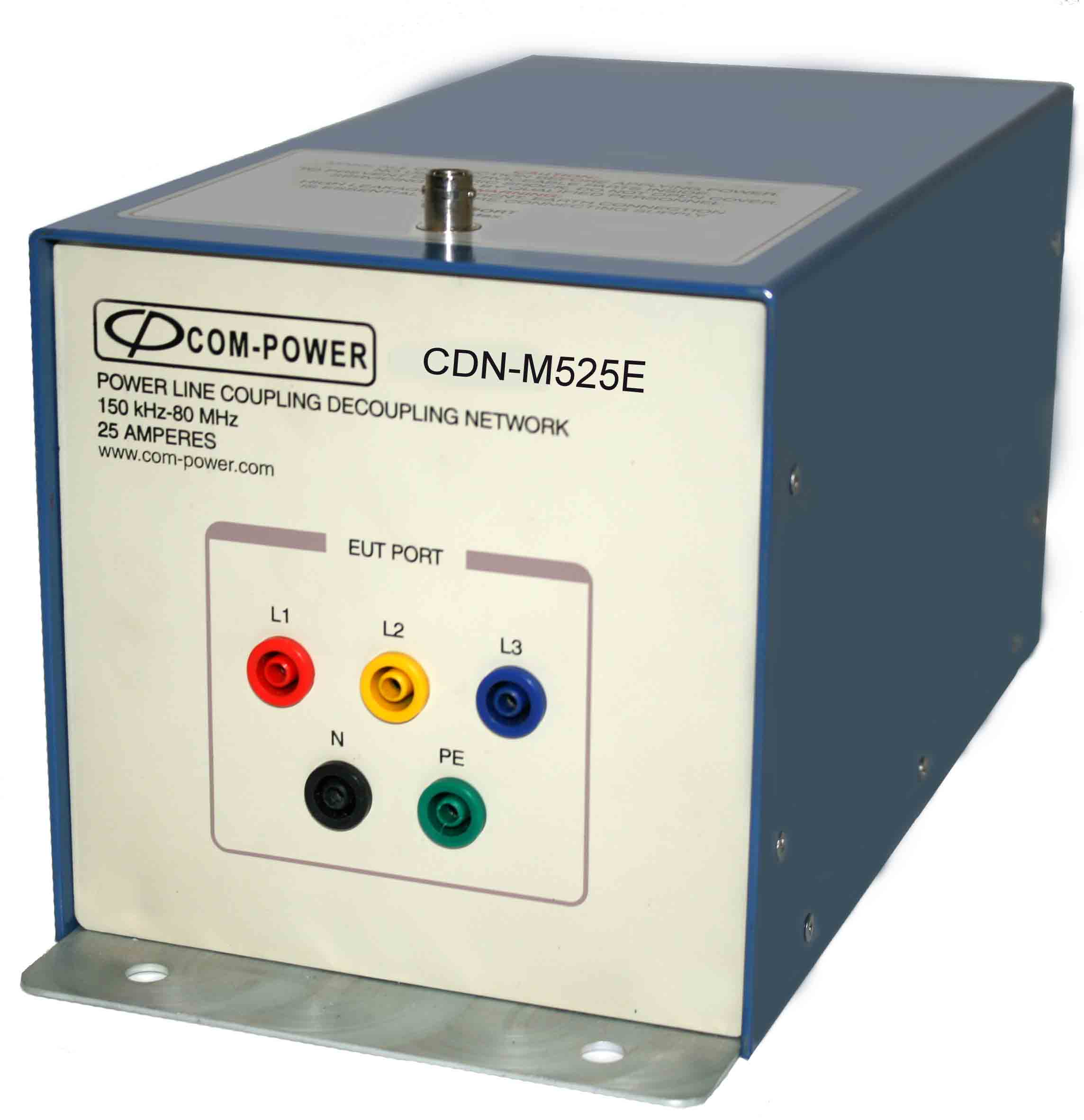

The Com-Power CDN-M525E is designed for testing products that uses five conductor power cable. It has five 4 mm shrouded banana socket for both EUT and AE power connections. The CDN-M525E can handle up to 25 Amps AC and 17 Amps DC of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. The CDN-M525E fully complies with the requirement contained in the IEC 61000-4-6 and CISPR 16-1-2. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system. This is a pre-packaged solution that includes an ACS series power amplifier and all accessories required for the test.

•Designed for IEC / EN 61000-4-6
•Five conductor power cable
•Individual Calibration Included
•Three Year Warranty
