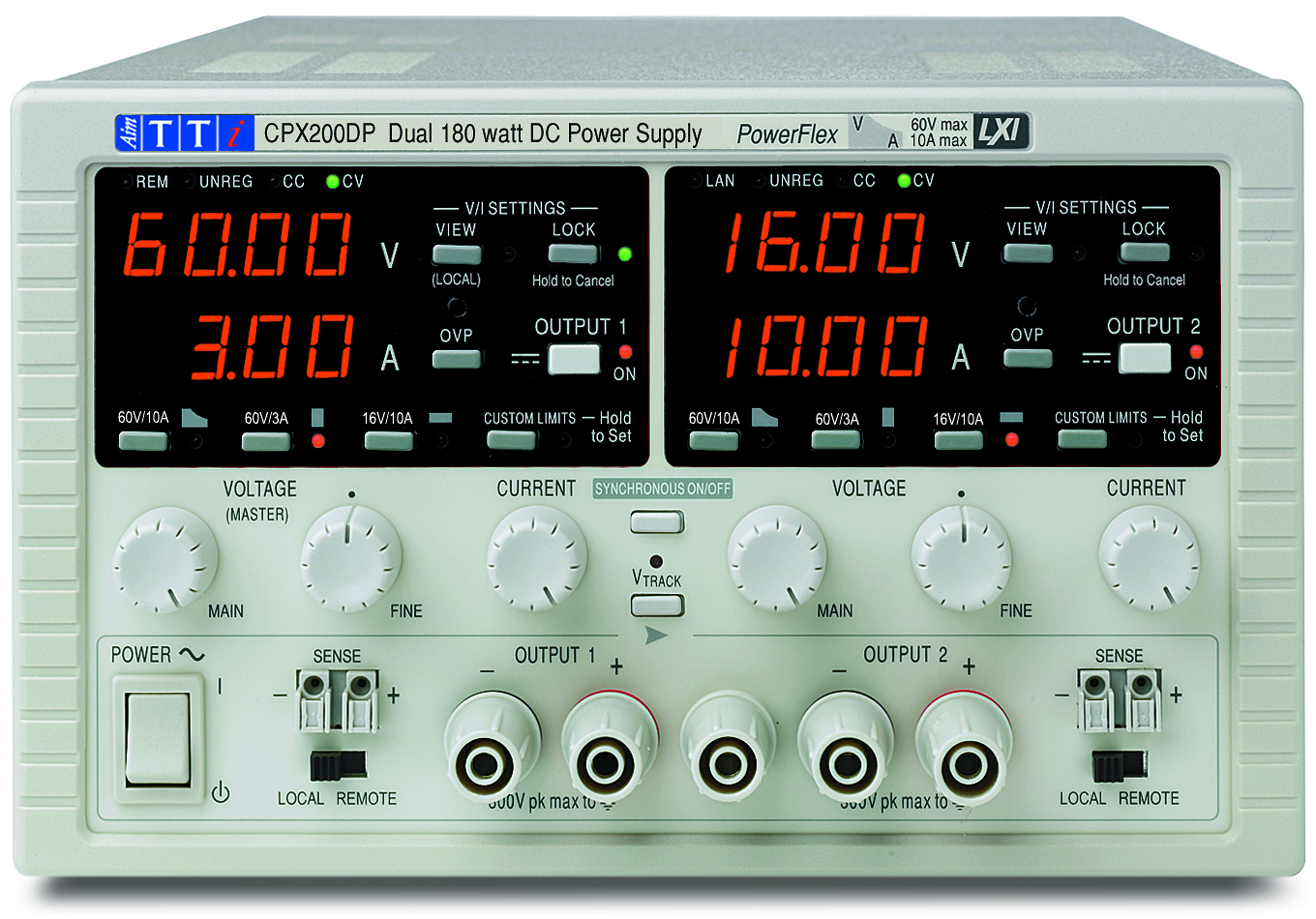

Aim TTi CPX200DP 2 x 60V/10A 180W Programmable DC Power Supply Dual Outputs, USB, RS232, LAN & GPIB Interfaces

1.110,00

•Number of outputs: 2
•Output voltage: 0-60V DC
•Output current: 0-10A
•Rated power: 360W
•Voltage Setting: Resolution/Accuracy: 1mV / ± (0.05% +10mV)
•Voltage Setting: Resolution/Accuracy: 1mV / ± (0.05% +10mV)
•Current Setting: Resolution/Accuracy: 1mA / ± (0.3% +5mA
•RS-232: Standard 9-pin D connector. Baud rate 9,600.
•USB: USB 2.0 connection (backwards compatible with USB 1.x). Operates as a virtual COM port.
•GPIB (IEEE-488): The interface conforms with IEEE-488.1 and IEEE-488.2.
•Ethernet (LAN): Standard 10/100 base-T hardware connection. ICMP and TCP/IP Protocol for connection to Local Area Network or direct connection to a single PC.
•LXI Compliance: LAN interface is compliant with LXI Core 11 v1.4. (LXI is the abbreviation for Lan eXtensions for Instrumentation)

Artikelnummer: 00323 Kategorien: ,

Beschreibung

The Aim TTi CPX200DP is the latest variants of the CPX series and replace the best-selling CPX200. PowerFlex regulation enables the 360 watts of total power to be configured to suit each specific application. The two 180 watt outputs can each supply up to 60 volts or up to 10 amps.  Isolated tracking enables the outputs to be wired in series or parallel whilst controlled from a single voltage adjustment for up to 120 volts or 20 amps. The CPX200DP includes rear terminals and USB, RS232, GPIB and LXI compliant LAN Interfaces.

•PowerFlex design gives variable voltage and current combinations within a maximum power envelope
•Up to 60V and up to 10A per output (180W maximum)
•Constant voltage or constant current operation
•Settings Lock (S-Look)
•Low output noise and good transient response
•PowerFlex or fixed-range operation plus custom limits
•True analogue controls with digital settings locking
•Independent outputs or isolated voltage tracking
•Outputs can be wired in series or parallel for 120V or 20A
•Variable OVP trips; safety binding-post terminals
•4 digit fixed resolution meters; selectable remote sensing
•Compact ½ rack 3U case for bench use or rack mounting
•Duplicate terminals at rear on CPX200DP
•GPIB, RS-232, USB and LAN interfaces with LXI compliance (CPX200DP only)

Zusätzliche Information

Hersteller

Kategorien

Aim TTi CPX200DP         2 x 60V/10A 180W Programmable DC Power Supply Dual Outputs, USB, RS232, LAN & GPIB Interfaces

AIM-TTI CPX200DP Produktdatenblatt
