Beschreibung

Prominent functions, portable size and user-friendly design make DN065 the perfect one. As al test tool for Ethernet, the DN065 delivers in meeting the increasing demands of analyzing and troubleshooting the Ethernet networks in construction or maintenance.

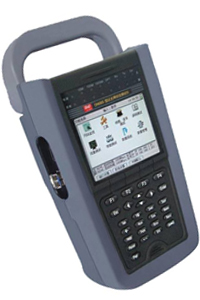

Highlights – DN065 10/100/1000M ETHERNET ANALYZER
Handheld, portable, fit for various complex testing environments.
Easy-to-use graphical interface to minimize the training requirements.
Dual-port testing mode: complete most of the tests via a SINGLE DN065.
Remote testing mode: perform long-distance tests via two DN065 placed at the two ends of a WAN.
RFC2544 Benchmark Test: ability to test full line rate 10/100 and GE performances-including Throughput, Latency, Frame Loss and Back-to-Back Frames tests.
Multi-protocol support including DIX/802.2/802.3.
Supporting Bit Error testing of ISO Layer 1-3.
Multi-option traffic generation: generate constant, bursted or ramped traffic loads, as well as simulating multi-stations up to 500.
Optional multi-parameter input: meet experts’ demands.
Multi network tools and Comprehensive network monitor functions: learn the tiny details of your Ethernet network.
Multi testing interface choices: including electrical interface and optical interface of single-mode and multi-mode.
Super terminal function : you will feel as working on a real PC.
Remote control: you can conveniently download the saved data anywhere you get internet connection
Online help: press HELP to find the answer to your question about using DN065
Specifications – DN065 10/100/1000M ETHERNET ANALYZER

Test Port: 10/100/1000BASE-Tⅹ2、100/1000BASE-Xⅹ2
10/100/1000BASE-T：RJ45
100 BASE-FX：850nm single-mode 、1310nm multimode
1000BASE-SX：850nm multi-mode
1000BASE-LX：1310nm single-mode
1000BASE-ZX：1550nm single-mode
Support protocol : DIX/802.3 SNAP
Display: TFT LCD. Resolution: 320(H) x 240 (V). The display is capable of displaying text and graphics in up to 16 bits color.
Weight :1.1kg
Power:
Battery :A 3800MA removable rechargeable Li battery pack
External power : Power converter: External AC to DC power converter
Dimensions: 190(L)×108(W)×50(H) mm3
Operating temperature range :0 to 40
Storage temperature range :-10 to 55
Humidity range: 10%~90%
General features – DN065 10/100/1000M ETHERNET ANALYZER
Battery operation: 5 hours Minimum.
Store Test Results and Configuration: 64M RAM，128M CompactFlash card
Export test result to USB Disk to browse and print.
Upgradeable Firmware: via USB
