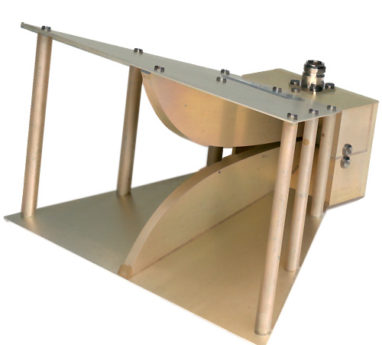

Com-Power AH-118 700MHz – 18GHz Horn Antenna

3.088,00

•Frequency Range: 700 MHz – 18 GHz
•Power: 300 Watts continuous
•VSWR: 2.0 : 1
•Polarization: Linear
•Impedance: 50 Ω
•Connector type: N type (f)
•Specifications:  FCC, CISPR, EN, ETSI, FAA, Mil-Std, SAE, etc.
•Size: 7.8” X 9.5” X 5.6” / 19.8 x 24.1 x 14.2 cm
•Weight: 4 lb. max.

Artikelnummer: 0107 Kategorien: ,

Beschreibung

The Com-Power AH-118 Broadband Double Ridged Waveguide Horn Antenna is for EMC. This antenna is linearly polorized and is designed specifically for EMC measurements for the 1-18 GHz frequency range. The AH 118 is suitable for ANSI 63.4, CISPR16, EN 55022, FAA and other EMC standards that require emissions and immunity testing. The gain of this Horn antenna is at least 6.1 dBi over the entire frequency range. The AH-118 can accept up to 300 Watts input power in continuous mode. This antenna is constructed using light weight aluminum with a corrosion resistant conductive coating.

•Broadband – For sweep measurements
•High Gain – Lower Floor Noise for Emissions
•Individual calibration
•Three year warranty





Zusätzliche Information

Hersteller

Kategorien

Com-Power AH-118    700 MHz – 18 GHz Horn Antenna

Com-Power AH-118 Produktdatenblatt
