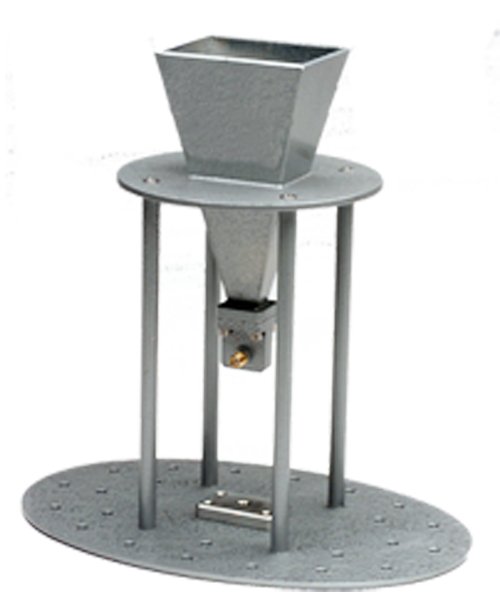

Com-Power AH-840 18GHz – 40GHz Double Ridged Horn Antenna

3.195,00

•Frequency Range: 18 GHz – 40 GHz
•Power Handling (CW): 10/200 Watts [with/without] waveguide to coaxial adapter)
•VSWR: 2.0 : 1
•Polarization: Linear
•Impedance: 50Ω
•Connector: 2.92 mm [K-type] (female)
•Specifications: FCC, CISPR, EN, ETSI, FAA, Mil-Std, Automotive, etc.
•Size: 8.7” x 5.9” x 7.9” [22 x 15 x 20 cm]
•Weight: 1 lb./ 0.5 kg

Artikelnummer: 0112 Kategorien: ,

Beschreibung

The Com-Power AH-840 is a broadband linearly polarized double ridged waveguide horn antenna designed specifically for Electromagnetic Interference testing. This antenna can be used for receiving as well as transmitting applications for the frequency range of 18 GHz to 40 GHz. The AH-840 has a high gain; least 20 dBi over the entire frequency range. This antenna can accept up to 5 Watts of input power at its terminals in continuous mode for generating electromagnetic fields for immunity testing. The AH-840 Horn antenna has a K type connector which can mate with SMA type connectors.

•High Gain – Lower Floor Noise for Emissions
•Individual Calibration
•Three year warranty







Zusätzliche Information

Hersteller

Kategorien

Com-Power AH-840    18GHz – 40GHz Double Ridged Horn Antenna

Com-Power AH-840 Produktdatenblatt
