Beschreibung

Discontinued Replaced by: LI-125C

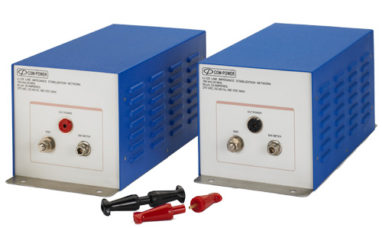

The Com-Power LI-125A Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-125A is compliant with both CISPR 16-1-2 and ANSI C63.4. The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-125A includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-125A pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-125A is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-125A is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current. The Com-Power LI-125A Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-125A is compliant with both CISPR 16-1-2 and ANSI C63.4. The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-125A includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-125A pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-125A is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-125A is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.

•Fully compliant with CISPR 16-1-2 / ANSI C63.4
•“Air-core” inductors to prevent saturation
•Individual Calibration Included
•Three-Year Warranty
