Com-Power LI-325C 10kHz – 400MHz LISN pair, 5 uH, 25 Amps, RTCA DO-160/Mil Std 461

1.698,00

•Specification: RTCA DO-160 / MIL-STD 461D
•Application: Power Line conducted emission tests
•Frequency Range: 10KHz – 400 MHz
•RF Connector: 50 Ohms N-type (female)
•Current Rating: 25 Ampere AC, 17 Ampere DC
•Voltage Rating: 270 VAC (Line to Ground), 380 VDC
•Inductors: 5 µH (air-core)
•Mains & EUT Connections: Superior Electric SUPERCON® shrouded sockets
•Dimensions (each network): 11.8 x 5.7 x 5.3 inches / 30 x 14.5 x 13.5 cm
•Weight (each network): 5 lbs. / 2.2 kg
•Insertion Loss: <0.3 dB (150 kHz – 30 MHz)

Artikelnummer: 0162 Kategorien: ,

Beschreibung

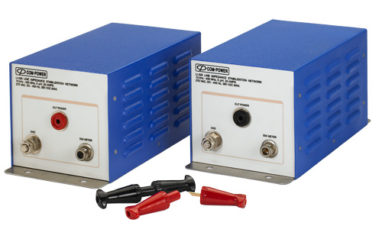

The Com-Power LI-325C Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-325C is compliant with both RTCA DO-160 and MIL-STD 461. The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-325C includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single-phase, dual-phase or DC power system. A second LI-325C pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-325C is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-325C is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.

•Fully compliant with DO-160/ MIL-STD 461
•“Air-core” inductors to prevent saturation
•Individual Calibration Included
•Three-Year Warranty

Zusätzliche Information

Hersteller

Kategorien

Com-Power LI-325C       10kHz – 400MHz LISN pair, 5 uH, 25 Amps, RTCA DO-160/Mil Std 461

Com-Power LI-325C Produktdatenblatt
