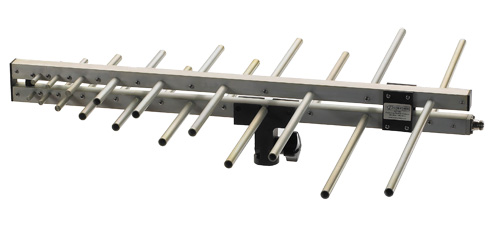

Com-Power ALP-100 200MHz – 1000MHz Log Periodic Antenna

1.733,00

•Frequency Range: 200 MHz to 1 GHz
•Power (CW): 500 Watts
•Average Gain: 6 dBi
•Average VSWR: 1.2: 1
•Polarization: Linear
•Impedance: 50 Ω
•Connector: N type (f)
•Specifications: FCC, CE, Mil-Std, RTCA DO-160, FDA,  SAE, etc
•Dimensions (L x W x H): 30.125” x 29.5” x 5.3” [76.5 x 74.9 x 13.5 cm]
•Weight: 5 lb / 2.2 kg

Artikelnummer: 0106 Kategorien: ,

Beschreibung

The Com-Power ALP-100 log periodic antenna is lightweight, compact and rugged. It can be utilized as a receiving antenna for radiated emissions tests, or as a transmitting antenna for radiated immunity tests. It has low VSWR and high power handling capabilities. It is suitable for use in any normal test environment, such as an absorber-lined chamber or outdoors on an open area test site. It operates over the frequency range of 200 MHz to 1 GHz. This antenna is geared specifically for high power applications up to 500 watts.

•Transmitting and Receiving Applications
•Individual Calibration
•3 year warranty



Zusätzliche Information

Hersteller

Kategorien

Com-Power ALP-100    200MHz – 1000 MHz Log Periodic Antenna

Com-Power ALP-100 Produktdatenblatt
