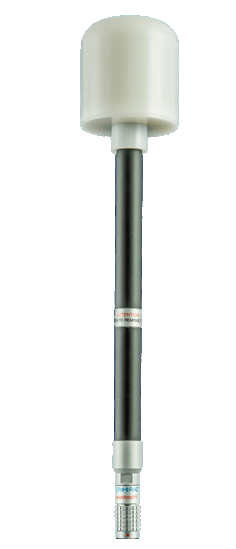

Microrad 01E Probe Electric Field Probe: E field, 100 kHz ÷ 6.5 GHz

1.950,00

01E (Electric Field Probe): E Field
•Frequency range: 100 kHz ÷ 6.5 GHz
•Type of frequency Response: Flat
•Measurement range: 0.2 ÷ 360 V/m (cw)
•Dynamic range: > 65 dB
•Sensor type: Diode dipoles
•Directivity: Isotropic
•Frequency Response: ± 1.5 dB (1 MHz ÷ 3 GHz), ± 2.5 dB (3 GHz ÷ 6.5 GHz)
•Linearity: ± 0.5 dB (2 ÷ 200 V/m)
•Isotropic Response: ± 0.5 dB (@100 MHz)
•Pulse response 500 µs (with NHT3D)

Artikelnummer: 0081 Kategorien: ,

Beschreibung

The Microrad 01E probe is based on a set of three mutually orthogonal diode dipoles. The signal from the three dipoles is used by the NHT310 or NHT3D instruments to calculate the isotropic value of the field. The 01E probe is able to detect both CW (Continuous Wave) and modulated signals in the frequency ranges from 100kHz to 6.5GHz, allowing operators to cover applications in the industrial, scientific, medical, telecommunications and power plants sectors. The high sensitivity of this probe makes it ideal for protectionist measurement of human exposure to electric fields in both public and professional environments. The introduction of the signal envelope sampling technique, carried out with the NHT3D meter, allows not only a reliable reading of the field value, but also, for the first time, the graphical representation in the time domain of the form factor of the analyzed signal. This innovative technique opens up new analytical perspectives, allowing to distinguish and evaluate intermittent or pulse signals with important crest factors such as those typical of mobile telephones or radar.

Typical Application:
•Industrial ovens, welding systems, RF heating, tempering and drying systems
•Diathermy equipment and medical devices RF generators, NMR machines
•Power plants and related maintenance and control systems
•Sensitive site (hospital)
•Measurement systems for railway and round transport
•Wireless telecommunication systems such as mobile phone base stations, satellite communication equipment, Broadcasting equipment, Wi-Fi, Wi-Max and LTE.

Zusätzliche Informationen

Hersteller

Kategorien

Microrad 01E Probe      Electric Field Probe: E field, 100 kHz ÷ 6.5 GHz

Microrad 01E Probe Produktdatenblatt
