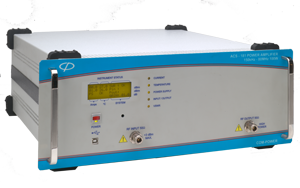

Com-Power ACS-181 150kHz – 80MHz, 100W Power Amplifier

5.542,00

•Frequency Range, 150kHz to 80MHz
•Rated Power Output: 100W into 2:1 VSWR
•Gain: 50dB ±2dB
•Input for rated output: 0dBm (typical)
•Automatic Safety Shut-off: 125W ±2
•Input Impedance: 50Ω (nominal)
•Input VSWR: 1.7 (maximum)
•Input Signal Modulation Compatibility: AM, FM, or Pulse modulation
•Input Connector: Type-N on Front Panel
•Output Impedance: 50Ω (nominal)
•Output VSWR: 1.7 (maximum)
•Output Harmonic distortion: -15dBc at 75W
•Output Mismatch Tolerance: Automatic Safety Shut-off @ VSWR >5
•Output Connector: Type-N on Front Panel
•Power (Universal) AC, Single Phase: 100 to 240VAC, 50/60Hz
•Interface: USB Remote Interface
•Remote Interlock: 2-pin DIN (optional)
•Cooling: Forced air (self-contained fans)
•Size: 19in Rack 4U
•Weight: 50lbs (22.6g)
•Operating Temperature Range: 0°C to +40°C

Artikelnummer: 0173 Kategorien: ,

Beschreibung

The Com-Power ACS-181 is part of Com-Power’s series of broadband RF amplifiers; diverse in application, yet specifically geared for use in EMC immunity testing applications. The ACS-181 model was engineered to provide high gain, with excellent efficiency and reliability, at an unbeatable price. It is the perfect amplifier solution for IEC 61000-4-6 Conducted Immunity testing (150 kHz to 80 MHz), complementing Com-Power’s full line of Coupling/Decoupling Networks (CDN’s) and related test and calibration accessories. With its 50 dB gain, 100 Watt nominal power output, it easily achieves 3 Vrms or 10 Vrms test levels with any compliant coupling network (CDN, EM Clamp, Injection Probe, etc.) The ACS-181 amplifier complies with all required technical specifications for IEC 61000-4-6 compliance testing, yet its low cost makes it affordable even as part of a pre-compliance testing solution.

•Immunity Testing
•IEC 61000-4-6 testing
•Three Year Warranty



Zusätzliche Informationen

Hersteller

Kategorien

Com-Power ACS-181        150kHz – 80MHz, 100W Power Amplifier

Com-Power ACS-181 Produktdatenblatt
