ACS-250-100W Com-Power

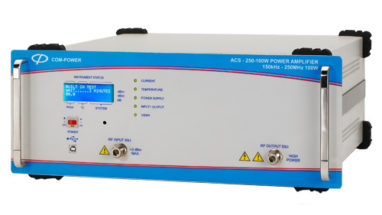

Com-Power ACS-250-100W 150kHz – 250MHz, 100W Power Amplifier

13.470,00 €

exkl. 19 % MwSt. zzgl. Versandkosten

  • Frequency Range: 150kHz to 250MHz
  • Rated Power Output: 100W into 2:1 VSWR
  • Gain: 50dB ±2dB
  • Input for rated output: 0dBm (typical)
  • Automatic Safety Shut-off: 140W ±2
  • Input Impedance: 50Ω (nominal)
  • Input VSWR: 1.7 (maximum)
  • Input Signal Modulation Compatibility: AM, FM, or Pulse modulation
  • Input Connector: Type-N on Front Panel
  • Output Impedance: 50Ω (nominal)
  • Output VSWR: 1.7 (maximum)
  • Output Harmonic distortion: 15dBc at 100W
  • Output Mismatch Tolerance: Automatic Safety Shut-off @ VSWR >7
  • Output Connector: Type-N on Front Panel
  • Operating Power: AC, Single Phase 100 to 240VAC, 50/60Hz
  • Interface: USB Remote Interface
  • Remote Interlock: 2-pin DIN (optional)
  • Cooling: Forced air (self-contained fans)
  • Size: 19in Rack 2U
  • Weight: 47lbs (21.4kg)
  • Operating Temperature Range: 0°C to +40°C
Artikelnummer: 0176 Kategorien: ,

Beschreibung

The Com-Power ACS-250-100W is part of Com-Power’s series of broadband RF amplifiers; diverse in application, yet specifically geared for use in EMC immunity testing applications. The ACS-250-100W model was engineered to provide high gain, with excellent efficiency and reliability, at an unbeatable price. It has 50 dB gain, 100 Watt nominal power output., The ACS-250-100W amplifier complies with all required technical specifications for IEC 61000-4-6 compliance testing, yet its low cost makes it affordable even as part of a pre-compliance testing solution.

•Immunity Testing
•IEC 61000-4-6 testing
•Three Year Warranty









Zusätzliche Informationen

Hersteller

Kategorien

Com-Power ACS-250-100W    150kHz – 250MHz, 100W Power Amplifier

Com-Power ACS-250-100W Produktdatenblatt
