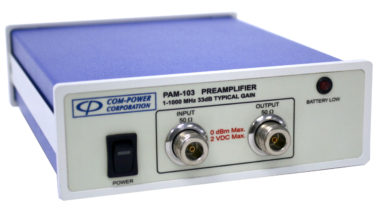

Com-Power PAM-103 1MHz – 1000MHz Preamplifier, 33dB Gain

1.439,00

•Frequency: 1 MHz – 1000 MHz
•Application: EMI / EMC Measurements
•Preamplifier Gain: 33 dB
•Gain Flatness: ± 3 dB
•3 dB Bandwidth: 500 kHz,1200 MHz
•Noise Figure: < 3.3 dB
•P1dB: +4 dBm
•VSWR (RF Input/Output Ports): 1.69:1 (maximum), 1.25:1 (average)
•Reverse Isolation: >40 dB (output port to input port)
•Impedance I/O: 50 Ohms
•Operating Temperature Range: 0° to 40° C
•Connector: Type N (female)
•Power Input: 15 VDC, 500 mA
•Battery Pack: 2 x 6 V NimH Battery packs
•Size: (L x W x H) 7.5″ x 5″ x 3″ (19 x13 x 7.6 cm)
•Weight: 3.3 lbs. (1.5 kg)

Artikelnummer: 0168 Kategorien: ,

Beschreibung

The Com-Power PAM-103 Preamplifier is intended for improving measurement system sensitivity during EMC compliance testing.. It has a frequency range of 1 to 1000 MHz.. It has gain of 33 dB gain . Therefore, It amplifies the signals that were previously hidden below the noise floor of the EMI receiver so that it can be seen and measured. The PAM-103 has a gain variation of ±3 dB for the entire frequency range to reduce measurement errors. It can be powered by the rechargeable NimH batteries included when an external power source is not available.

•Individual Calibration
•Three Year Warranty



Zusätzliche Information

Hersteller

Kategorien

Com-Power PAM-103   1 MHz – 1000 MHz Preamplifier, 33 dB Gain

Com-Power PAM-103 Produktdatenblatt
