Com-Power PAM-840A 18 GHz – 40 GHz Preamplifier, 42 dB Gain

  • Frequency Range: 18 GHz – 40 GHz
  • Gain: 42 dB
  • Gain flatness: ± 2 dB
  • RF Input/output: 50Ω 2.9mm female
  • VSWR ( Input/Output): 2.25:1 (max)
  • Noise Figure: <5 dB @ 25 °C
  • Pout @ 1dB comp: +10 dBm (min)
  • DC input: 0 Vdc (max)
  • Reverse isolation: 40 dB (typical)
  • DC Power supply: +15Vdc, 500 mA
  • Size: 7.6 x 5.95 x 2.17 inches (192 x 151 x 55 mm)
  • Weight: 2.5 lbs (1.1 3Kg)
Artikelnummer: 0172 Kategorien: ,

Beschreibung

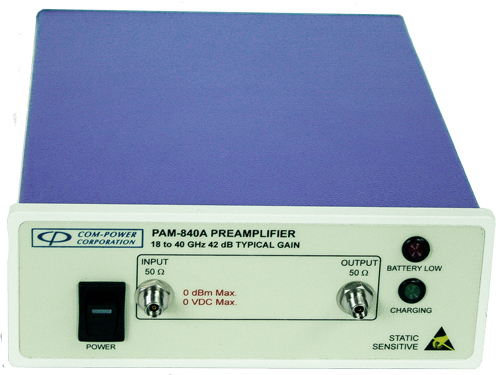

The Com-Power PAM-840A is a Wideband, high gain, bench top microwave preamplifier. The PAM-840A has a frequency range of 18 GHz to 40 GHz. This preamplifier is primarily intended for EMC applications; however, it may be used for other applications that require low noise and high signal amplification. The simple front panel consists of two 50 Ohm matched air core 2.9 mm connectors for input and output. The preamplifier was designed to have flat gain with minimal variation over the entire frequency range. The flat gain helps in taking fast readings during troubleshooting, R&D phase. The high gain and low noise figure of PAM-840A increases system sensitivity of effectively all measurement systems. It is very effective in measuring low level signals during Electromagnetic Interference (EMI) testing. It has low VSWR and high reverse isolation. The PAM-840A preamplifier increases system sensitivity enhancing the capability of measurement system to measure low level signals. It also provides input isolation to your spectrum analyzer or Receiver.

•Battery Powered
•Three Year Warranty

Zusätzliche Informationen

Hersteller

Kategorien

Com-Power PAM-840A   18 GHz – 40 GHz Preamplifier, 42 dB Gain

Com-Power PAM-840A Produktdatenblatt
