Aim TTi PSA6005 6GHz Handheld Spectrum Analyser


•Frequency : 10 MHz to 6.0 GHz
•Reference Level: +20dBm – -40dBm
•Noise Floor / DANL:-120dBm (Ref = -40dBm, 10kHz RBW);  -160dBm/Hz
•Resolution bandwidth (RBW):  300 Hz to 10 MHz (1:3:10)
•Video Bandwidth (VBW): 300Hz to 10MHz or Tracking

Artikelnummer: 00307 Kategorien: ,

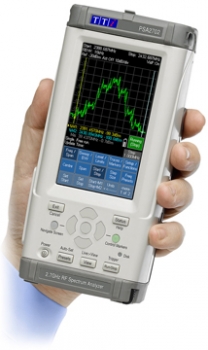

The Aim-TTi PSA6005 RF spectrum analyzers have capabilities up to 6 GHz, and combine small size with light weight for true portability. Their large TFT color touch-screens provide a high-resolution display that provides a wealth of detailed information. Color is used to clearly distinguish between multiple traces, markers and limit lines. The touch-screen’s intuitive menu system facilitates control of the many functions, and makes set-up fast and easy.
Unlimited data storage
With nearly 2 GB of internal memory, the PSA6005 can store thousands of waveforms, instrument set-ups, or complete screen images. With option U02 installed, they can also log tens of thousands of results and make use of compensation tables and limit patterns. All files can be saved with either default file names or with user defined names using the alpha-numeric keypad. USB Flash drives can be used to copy and backup data, or transfer it to a PC for analysis. Alternatively a USB device interface is included for direct connection to a PC for file transfer.
Data export and transfer
USB device and host connectors are provided enabling the PSA6005 to linked directly to a PC for file transfer, and for the connection of USB Flash drives for data transfer or storage. Trace files have a standard comma separated value (.csv) format which can be imported into other applications such as Excel or MathCad. Screen images are stored as standard bitmaps that can be manipulated and printed using a PC as well as being recalled to the PSA screen.

•Measurement in dBm or dBμV, mV or μW
•Zero span mode with AM and FM audio demodulation
•Trace modes of normal, peak hold and trace average
•4.3″ TFT touch screen
•Live, View and Reference traces in contrasting colors
•Twin markers with readout of absolute & difference values
•Smart marker movement with selectable peak tracking
•Frequency presets and independent state storage
•Comprehensive status and context sensitive help screens
•Auto-find automatically sets sweep parameters for highest signal
•Three-year warranty



Zusätzliche Information



Aim TTi PSA6005    6GHz Handheld Spectrum Analyser

Aim TTi PSA6005 Produktdatenblatt
