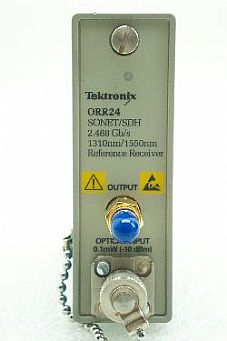

Tektronix ORR24 2.0GHz Optical Reference Receiver

•Channels: 1
•Bandwidth: 2.0 GHz
•Rise Time: 205 ps
•Impedance: 50 Ohm
•Applications (Typical): Optical Reference Receivers (SONET/SDH)

Artikelnummer: 11963 Kategorien: ,


The Synchronous Data Hierarchy (SDH) and the Synchronous Optical NETwork (SONET) standards are the cornerstones of today’s high-speed digital telecommunications systems. The Tektronix ORR24 optical reference receiver provides an important interface for compliance testing of SDH/SONET optical transmission products or components. The amplified design of the ORR24 converts the incoming optical light into a high gain, low noise electrical signal. This allows easy testing of optical designs as well as repeatable measurements. The ORR24 is DC coupled which is required for accurate extinction ratio measurements.

•Standards Compliance: SONET/SDH 2.488 Gb/s
•Accurate Extinction Ratio Measurements
•Eye-Pattern and Pulse Shape Measurements

Zusätzliche Informationen



Tektronix ORR24       2.0GHz Optical Reference Receiver

Tektronix ORR24 Produktdatenblatt
