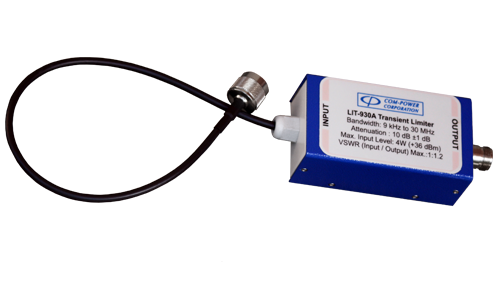

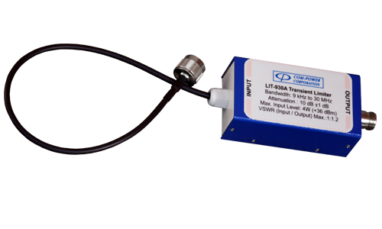

Com-Power LIT-930A 9kHz – 30MHz Transient Limiter

628,00

•Frequency range: 9 kHz – 30 MHz
•Insertion loss: 10 dB +1.5 / -0.5 dB*
•Max. input level: 4 Watts CW (+36 dBm) ±50 Vdc
•VSWR: <1.1:1
•Connectors: N type (input and output)
•Dimensions: L 4.3” (100 mm) W 2.0” (50 mm) H 1.5” (35 mm)

Artikelnummer: 0183 Kategorien: ,

Beschreibung

The Transient limiter LIT-930A protects a spectrum analyzer input from high-level transients from the Line Impedance Stabilization Networks during EMI conducted emissions testing. It has frequency range of 9 kHz -30 MHz. The integrated high-pass filter helps reduce 50/60 Hz line feed through. Conducted EMI emissions measurement are conducted using Line Impedance Stablization Network (LISN). The EMC receiver input is connected live and neutral line of the product via the LISN. The LISN blocks the supply voltage from LISN RF port but permits the RF signal to pass without much attenuation, so that it can be measured with an EMC receiver. Because the RF signal must be passed through, any short transients (a few microseconds or less) on the power supply lines will also be passed through. Transient limiter LIT-930A protects the EMI receiver input from these short transients. A transient with high enough energy will damage an unprotected receiver input.

•For conducted emissions testing with LISN
•Protects spectrum analyzer input
•10 dB In-band Attenuation
•Excellent VSWR
•Three Year Warranty

Zusätzliche Information

Hersteller

Kategorien

Com-Power LIT-930A    9kHz – 30MHz Transient Limiter

Com-Power LIT-930A Produktdatenblatt
