Com-Power AD-100A 30MHz – 1GHz Tuned Dipole Antenna Set

zzgl. Versandkosten

•Frequency Range:
•Balun 1 (dB1): 30 MHz – 65 MHz
•Balun 2 (dB2): 65 MHz – 180 MHz
•Balun 3 (dB3): 175 MHz – 400 MHz
•Balun 4 (dB4): 400 MHz – 1 GHz
•Polarization: Linear
•Nominal Impedance: 50 Ohm
•RF Connectors: BNC-type(female)
•Min. Element Lenght: 2.6 inches [6.6 cm]
•Max. Element Lenght: 114 inches [290 cm]
•Isotropic Gian: 1.6 dBi
•VSWR: less than 1.5:1
•Specifications: ANSI, CISPR, EN, ETSI, etc.
•Weight: 15 lbs [6.8 kg] (including baluns, elemnts & case)

Artikelnummer: 0116 Kategorien: ,

Beschreibung

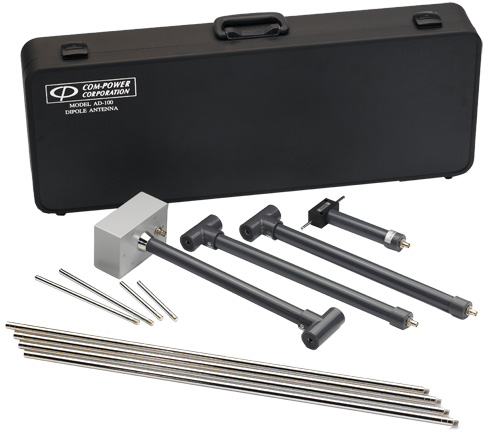

The Com-Power AD-100A is a Half-Wave Tuned Dipole Antenna Set, complete with custom carrying/storage case. The set includes the four standard antenna balans described in ANSI C63.5, along with all of the necessary antenna elements for the frequency range of 30 MHz to 1 GHz. This frequency range is divided into four sub ranges, corresponding to the frequency range of each individual balan, as shown in the following table.

•Adjustable (Tunable) Elements
•Dipoles considered “reference antenna”
•Rugged Carrying/Storage Case for transport and protected storage
•3 year  warranty

Zusätzliche Informationen

Hersteller

Kategorien

Com-Power AD-100A         30 MHz – 1 GHz Tuned Dipole Antenna Set

Com-Power AD-100 Produktdatenblatt
