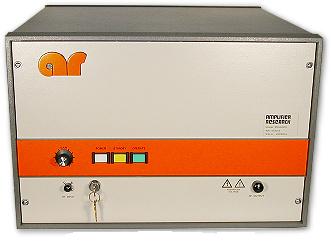

Amplifier Research 150A220 10KHz-220MHz, 150W Amplifier

• RATED OUTPUT POWER: 150 watts minimum
• INPUT FOR RATED OUTPUT: 1.0 milliwatt maximum
• POWER OUTPUT @ 3dB COMPRESSION •Nominal: 250 watts•Minimum: 150 watts
• POWER OUTPUT @ 1dB COMPRESSION •Nominal: 200 watts •Minimum: 150 watts
• FLATNESS:  •±1.5 dB maximum
• FREQUENCY RESPONSE: 10 KHz – 220 MHz:instantaneously
• GAIN: 53 dB minimum
• GAIN ADJUSTMENT (continuous range): 18 dB minimum

Artikelnummer: 1526 Kategorien: ,


The Amplifier Research 150A220 is a completely solid-state, linear broadband amplifier for laboratory applications requiring instantaneous bandwidth, high gain and moderate power. The 150A220 Amplifier incorporates the latest in MOSFET design, with complete thermal and over current protection and total mismatch tolerance. Computer control is available using the remote control capability provided by CP2001 and CP3000 accessories.

Zusätzliche Informationen



Amplifier Research 150A220    10KHz – 220MHz, 150W Amplifier

The Amplifier Research 150A220 Produktdatenblatt
