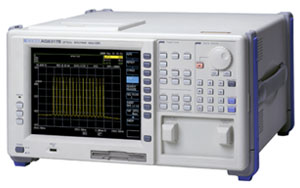

Ando AQ6317 600nm-1750nm Optical Spectrum Analyser

• Wavelength Range: 600 to 1750 nm
• Dynamic Range: 60dB to 70dB
• Wavelength Accuracy: 0.5 nm (600 to 1750nm)
• Wavelength Linearity: ±0.01 nm
• Wavelength Repeatability: ±0.005nm (1min)
• Wavelength Resolution: Max. resolution: 0.015 nm or better
• Polarization Dependency: ±0.05 dB (1550 nm)



Artikelnummer: 1642 Kategorien: ,

Beschreibung

The Ando AQ6317 is an advanced optical spectrum analyzer for a wide range of applications, including light source evaluation, measurement of loss wavelength characteristics in optical devices, and waveform analysis of WDM (Wavelength Division Multiplexing) systems. Especially at 1550 nm band, the unit achieves high wavelength accuracy and wavelength linearity, and can evaluate optical devices for WDM. Analysis functions make operation and expandability simple. The AQ6317 contains the latest of Ando’s technology for optical spectrum analyzers. A reference equipment for the next Generation.

•50 GHz WDM-Signals
•Versatile analysis functions for WDM and other optical devices (LD, LED FBG, etc.).
•Synchronous sweep
•Display:9.4-inch color LCD (640 x 480 dots)
•Pulsed light can be measured
•Three individual trace memories









Zusätzliche Information

Hersteller

Kategorien

Ando AQ6317    600nm-1750nm Optical Spectrum Analyzer

Ando AQ6317 Produktdatenblatt
