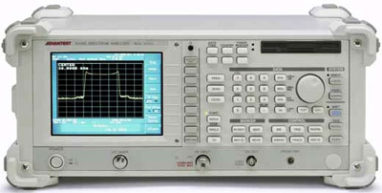

Advantest R3182 9kHz-40GHz Spectrum Analyser

•Dynamic Range +30 dBm – -132 dBm
•Frequency Range 9 kHz – 40 GHz
•Input Impedance 50 ohms
•Residual FM <=(60Hzp-p xN)/100ms
•Resolution Bandwidth 1 kHz – 3 MHz
•Video Bandwidth 10 Hz – 3 MHz



Artikelnummer: 1332 Kategorien: ,

Beschreibung

The Advantest R3182 is a low-cost portable spectrum analyzer capable of performing direct input measurements at a maximum frequency 40 GHz. Adopting newly designed RF circuitry, the R3182 aims for improved basic performance with their 40 GHz direct input capability. Further, the R3182 achieves best-in-class performance for average display noise levels of -106 dBm (at 40 GHz, RBW 1kHz), and SSB phase noise levels of 85 dBc/Hz (at 40 GHz, 20 kHz offset). Operating frequencies for radio communi-cations have increasing tendency to shift to higher frequencies. Accordingly, the R3182 has been developed as a personal-use spectrum analyzer capable of use in a wide range of applications from development to manufacturing of high fre-quency modules, devices, etc.

Zusätzliche Informationen

Hersteller

Kategorien

Advantest R3182    9kHz-40GHz Spectrum Analyser

Advantest R3182 Produktdatenblatt
