Com-Power LI-150A 150kHz – 30MHz LISN pair, 50 uH, 50 Amps, FCC/EN/CISPR


•Specification: CISPR 16-1-2 / ANSI C63.4
•Application: Power Line conducted emission tests
•Frequency Range: 150KHz – 30 MHz
•RF Connector: 50 Ohms N-type (female)
•Current Rating: 50 Ampere AC, 35 Ampere DC
•Voltage Rating: 270 VAC (Line to Ground), 380 VDC
•Inductors: 5 microhenry (air-core)
•Mains & EUT Connections: Superior Electric SUPERCON shrouded sockets
•Dimensions (each network): 15 x 10 x 10 inches / 38 x 25.4 x 25.4 cm
•Weight (each network): 14 lbs. / 6.3 kg
•Insertion Loss: <0.5 dB (150 kHz – 30 MHz)
•Isolation: > 40 dB (150 kHz – 30 MHz)

Artikelnummer: 0157 Kategorien: ,

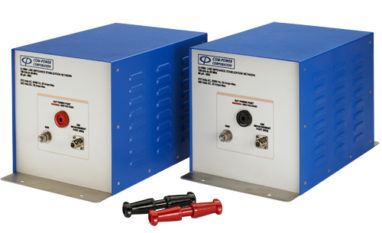

The Com-Power LI-150A Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-150A is compliant with both CISPR 16-1-2 and ANSI C63.4. The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-150A includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-150A pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-150A is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-150A is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current. It has a built in transient limiter for impedance matching, reduction of out-of-band emissions, and transient protection for your measurement instrument.

•Fully compliant with CISPR 16-1-2 / ANSI C63.4
•“Air-core” inductors to prevent saturation
•Individual Calibration Included
•Three-Year Warranty
