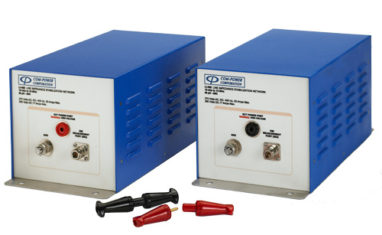

Com-Power LI-400C 10kHz – 10MHz, LISN pair, 50 uH, 25 Amps, Mil-Std 461

1.413,00

•Specification: MIL-STD 461
•Application: Power Line conducted emission tests
•Frequency Range: 10KHz – 10 MHz
•RF Connector: 50 Ohms N-type (female)
•Current Rating: 25 Ampere AC, 17 Ampere DC
•Voltage Rating: 270 VAC (Line to Ground), 380 VDC
•Inductors: 50 microhenry (air-core)
•Mains & EUT Connections: Superior Electric SUPERCON Shrouded sockets
•Dimensions (each network): 13 x 7 x 7 inches / 33 x 17.7 x 17.7 cm
•Weight (each network): 14 lbs / 6.3 kg

Artikelnummer: 0163 Kategorien: ,

Beschreibung

(LI-400 Discontinued, Replaced by LI-400C) The Com-Power LI-400C Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-400C is compliant with MIL-STD 461. The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-400C includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-400C pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-40C is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-400C is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current. Use of a Transient Limiter for impedance matching, reduction of out-of-band emissions and transient protection for your measurement instrument is highly recommended and available from Com- Power.

•Fully compliant with MIL-STD 461
•“Air-core” inductors to prevent saturation
•Individual Calibration Included
•Three-Year Warranty

Zusätzliche Information

Hersteller

Kategorien

Com-Power LI-400C       10kHz – 10MHz, LISN pair, 50 uH, 25 Amps, Mil-Std 461

Com-Power LI-400 Produktdatenblatt
