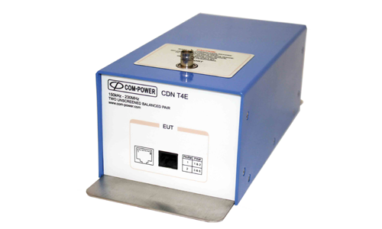

Com-Power CDN-T4E 150kHz-230MHz Coupling / Decoupling Network, Two Unscreened Balanced Pairs

1.640,00 €

exkl. 19 % MwSt. zzgl. Versandkosten

•Application: Two unscreened, balanced pair
•Frequency Range: 150 kHz to 230 MHz
•RF Input Voltage: 40 V (Max)
•RF Input Connector: 50 Ω BNC (Female)
•Voltage Rating: 124 VAC / 125 VDC (Line to Ground)
•Current Rating: 2 Amps (Max)
•AE and EUT Connections: RJ 11
•Common Mode Impedance. 150 kHz – 26 MHz: 150Ω ± 20Ω
•Common Mode Impedance: 26 MHz – 80 MHz: 150Ω + 60Ω / – 45Ω
•Common Mode Impedance: 80 MHz – 230 MHz: 150Ω + 60Ω / – 60Ω
•Voltage Division Factor: 9.5 dB +4 / -1
•Decoupling of Common Mode Disturbance: 150 KHz ≥ 45 dB (RF/AE)
•Decoupling of Common Mode Disturbance: 500 KHz ≥ 50 dB (RF/AE)
•Decoupling of Common Mode Disturbance: 230 MHz ≥ 50 dB (RF/AE)
•Dimensions: 8.5 x 4.5 x 3.5 Inches / 21.5 x 11.4 x 8.8 cm
•Weight: 5 lbs. / 2.3 kg

Artikelnummer: 0132 Kategorien: , ,

Beschreibung

The Com-Power CDN-T4E is designed for testing products that uses two unscreened, balanced pairs for communication such as Ethernet. It has a RJ45 connectors for both EUT and AE connection. The CDN-T4E can handle up to 2 Amps of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. The CDN-T4E fully complies with the requirements contained in the IEC 61000-4-6 and CISPR 16-1-2. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system. This is a pre-packaged solution that includes an ACS series power amplifier and all accessories required for the test.

•Designed for IEC / EN 61000-4-6
•Two unscreened, balanced pairs
•Individual calibration included
•Three Year Warranty
