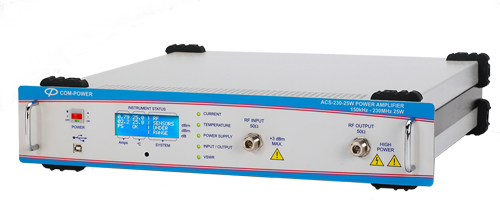

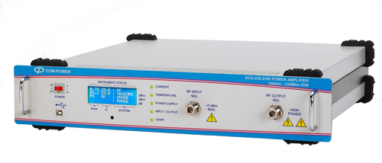

Com-Power ACS-230-25W 150kHz – 230MHz, 25W Power Amplifier

7.166,00

  • Frequency Range: 150kHz to 230MHz
  • Rated Power Output: 25W into 2:1 VSWR
  • Gain: 43dB ±2dB
  • Input for rated output: 0dBm (typical)
  • Automatic Safety Shut-off: 30W ±2
  • Input Impedance: 50Ω (nominal)
  • Input VSWR: 1.7 (maximum)
  • Input Signal Modulation Compatibility: AM, FM, or Pulse modulation
  • Input Connector: Type-N on Front Panel
  • Output Impedance: 50Ω (nominal)
  • Output VSWR: 1.7 (maximum)
  • Output Harmonic distortion: -20dBc at 25W
  • Output Mismatch Tolerance: Automatic Safety Shut-off @ VSWR >7
  • Output Connector: Type-N on Front Panel
  • Operating Power: AC, Single Phase 100 to 240VAC, 50/60Hz
  • Interface: USB Remote Interface
  • Remote Interlock: 2-pin DIN (optional)
  • Cooling: Forced air (self-contained fans)
  • Size: 19in Rack 2U
  • Weight: 25lbs (11.3kg)
  • Operating Temperature Range: 0°C to +40°C
Artikelnummer: 0174 Kategorien: ,

Beschreibung

The Com-Power ACS-230-25W is part of Com-Power’s series of broadband RF amplifiers; diverse in application, yet specifically geared for use in EMC immunity testing applications. The ACS-230-25W model was engineered to provide high gain, with excellent efficiency and reliability, at an unbeatable price. It is the perfect amplifier solution for IEC 61000-4-6 Conducted Immunity testing (150 kHz to 230 MHz), complementing Com-Power’s full line of Coupling/Decoupling Networks (CDN’s) and related test and calibration accessories. With its 43 dB gain, 25 Watt nominal power output, it easily achieves 3 Vrms or 10 Vrms test levels with any compliant coupling network (CDN, EM Clamp, Injection Probe, etc.) The ACS-230-25W amplifier complies with all required technical specifications for IEC 61000-4-6 compliance testing, yet its low cost makes it affordable even as part of a pre-compliance testing solution.

•Immunity Testing
•IEC 61000-4-6 testing
•Three Year Warranty





Zusätzliche Information

Hersteller

Kategorien

Com-Power ACS-230-25W    150kHz – 230MHz, 25W Power Amplifier

Com-Power ACS-230-25W Produktdatenblatt
